材質：PA6
溫度范圍：-40℃～+150℃
特性：耐油，耐酸堿，防水，抗紫外線，絕緣，不含鹵素，阻燃
防護等級：IP66,使用合適的密封圈
顏色：黑色,灰色;

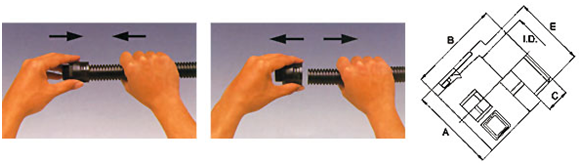

組裝圖 組立：軟管直接插入接頭 拆卸圖 拆卸：向左按緊接頭，軟管往右旋拉。
PG制螺紋
|
型號
|
適配軟管
|
尺寸
|
牙規格
|
包裝
|
||||
|
I.D.
|
A
|
B
|
C
|
E
|
pcs/bag
|
|||
|
ST009812-PG7
|
1/4"
|
7
|
17.5
|
30.5
|
8
|
12.5
|
PG7
|
50
|
|
ST009812-PG9
|
5/16"
|
10.5
|
20.6
|
37
|
10
|
15.2
|
PG9
|
50
|
|
ST009812-PG11
|
3/8"
|
12.5
|
23
|
37
|
10
|
18.6
|
PG11
|
50
|
|
ST009812-PG13.5
|
3/8"
|
12.5
|
23
|
37
|
10
|
20.4
|
PG13.5
|
50
|
|
ST009812-PG16
|
1/2"
|
17
|
29.5
|
44
|
12
|
22.5
|
PG16
|
50
|
|
ST009812-PG21
|
3/4"
|
23.3
|
37
|
46
|
12
|
28.3
|
PG21
|
50
|
|
ST009812-PG29
|
1"
|
30
|
44
|
48
|
12
|
37
|
PG29
|
50
|
|
ST009812-PG36
|
1-1/4"
|
36.5
|
54
|
48
|
12
|
47
|
PG36
|
25
|
|
ST009812-PG48
|
2"
|
48
|
67
|
52
|
14.5
|
59.3
|
PG48
|
20
|
|
ST009812-PG16
|
18.5
|
17
|
27.7
|
44
|
12
|
22.5
|
PG16
|
50
|
|
ST009812-PG21
|
25
|
23.4
|
34
|
46.4
|
12
|
28.3
|
PG21
|
50
|
|
ST009812-PG29
|
32
|
30
|
41.4
|
48.5
|
12
|
37
|
PG29
|
50
|
|
型號
|
適配軟管
|
尺寸
|
牙規格
|
包裝
|
||||
|
I.D.
|
A
|
B
|
C
|
E
|
pcs/bag
|
|||
|
ST009812-M10*1.5
|
1/4"
|
7
|
17.5
|
30.5
|
10
|
10
|
M10*1.5
|
50
|
|
ST009812-M12*1.5
|
5/16"
|
10.5
|
20.6
|
37
|
13
|
12
|
M12*1.5
|
50
|
|
ST009812-M16*1.5
|
3/8"
|
12.5
|
23
|
37
|
13
|
16
|
M16*1.5
|
50
|
|
ST009812-M20*1.5
|
1/2"
|
17
|
29.5
|
44
|
13
|
20
|
M20*1.5
|
50
|
|
ST009812-M25*1.5
|
3/4"
|
23.3
|
37
|
46
|
15
|
25
|
M25*1.5
|
50
|
|
ST009812-M32*1.5
|
1"
|
30
|
44
|
48
|
15
|
32
|
M32*1.5
|
50
|
|
ST009812-M40*1.5
|
1-1/4"
|
36.5
|
54
|
48
|
17
|
40
|
M40*1.5
|
25
|
|
ST009812-M50*1.5
|
2"
|
48
|
67
|
52
|
17
|
50
|
M50*1.5
|
20
|
|
ST009812-M20*1.5
|
18.5
|
15
|
27.7
|
45.2
|
13
|
20
|
M20*1.5
|
50
|
|
ST009812-M25*1.5
|
25
|
21
|
34
|
50
|
15
|
25
|
M25*1.5
|
50
|
|
ST009812-M32*1.5
|
32
|
27.5
|
41.4
|
52
|
15
|
32
|
M32*1.5
|
50
|
英制螺紋
|
型號
|
適配軟管
|
尺寸
|
牙規格
|
包裝
|
||||
|
I.D.
|
A
|
B
|
C
|
E
|
pcs/bag
|
|||
|
ST009812-PF3/8"
|
1/4"
|
7
|
17.5
|
30.5
|
10
|
16.3
|
PF3/8"
|
50
|
|
ST009812-PF3/8"
|
5/16"
|
10.5
|
20.6
|
37
|
13
|
16.3
|
PF3/8"
|
50
|
|
ST009812-PF1/2"
|
3/8"
|
12.5
|
23
|
39
|
13
|
20.9
|
PF1/2"
|
50
|
|
ST009812-PF1/2"
|
1/2"
|
17
|
29.5
|
43.5
|
13
|
20.9
|
PF1/2"
|
50
|
|
ST009812-PF3/4"
|
3/4"
|
23.3
|
37
|
49
|
15
|
26.4
|
PF3/4"
|
50
|
|
ST009812-PF1"
|
1"
|
30
|
44
|
52
|
16
|
33.2
|
PF1"
|
50
|
|
ST009812-PF1-1/4"
|
1-1/4"
|
36.5
|
54
|
54
|
18
|
41.9
|
PF1-1/4"
|
25
|
|
ST009812-PF2"
|
2"
|
48
|
67
|
59.5
|
22
|
59.6
|
PF2"
|
20
|
